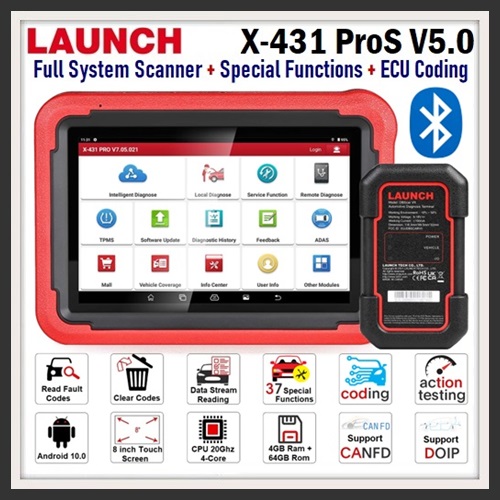

Launch X-431 ProS V5.0 Diagnostic Tool 37 Special Functions Intelligent Diagnose TPMS Supports CANFD And DOIP
The Launch X-431 ProS V5.0 is a new generation of 8-inch automotive intelligent diagnostic tool with high configuration and super performance. The tablet is developed based on the Android 10.0 system, using a 2.0Ghz 4-core efficient processor, 4GB RAM + 64GB ROM large storage, and equipped with a high-end battery to make diagnosis faster, more stable and longer-lasting. Launch X-431 ProS V5.0 can cover more than 98% of cars on the market. It supports fault diagnosis for all models and systems, and supports code reading, code clearing, data stream reading, special functions, action testing, coding, matching, and powerful diagnostic functions.
ALL LAUNCH PRODUCTS LINK: https://www.cardiagnosticsa.co.za/?s=LAUNCH
Launch X-431 ProS V5.0 Features:
- Android 10 system, large RAM/ROM, longer battery standby, faster.
- 8inch screen, Android 10.0, 2.0GHz 4 core processor, 4GB RAM+64GB ROM.
- Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DOIP.
- Wide car model coverage, strong diagnostic function, supports full system diagnosis of all car models.
- Support reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.
- Supports tire pressure activation, programming, learning and detection functions with a tire pressure gun.
- Support IMMO programming and other functions with X-PROG 3.
- Support Volkswagen Audi and other guidance functions (optional)
- Multiple expansion modules support: endoscope, BST-360, oscilloscope, sensor, Wi-Fi printer.
- Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
- Support VIN code intelligent identification function to quickly enter diagnosis.
Multi-language: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional.
Extended Modules Create Double Achievement
New Optional Functions: (Need to Buy it Extra Optional)
- Videoscope: Check unseen parts and give you a direct image of the engine, gears, compressors, headers and valves, and body components.
- X431 TSGUN: Active and relearn TPMS sensors; and program LAUNCH TPMS sensor.
- X-431 ADAS Mobile/PRO: Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system.
- X-PROG3: Add, delete, and reprogram keys; rewrite smart keys; replace key ECU.
- X431 WiFi Printer: Print diagnostic data or report for further analyzing and reviewing.
- Launch BST-360: Check the SOH of the on-board battery, functionality of discharge capacity and start-up capacity, etc. Provide a reliable analysis basis for the inspection and maintenance of car batteries.
Note: You can purchase these extended modules extra if needed.
Launch X-431 PROS V5.0 Functions:
37 Special Functions:
- Oil Reset Service: Close the oil service light and reset service mileage & service interval after replacing the engine oil.
- Steering Angle Calibration: Clear memories of the previous steering angle sensor and store the replaced one.
- Electronic Parking Brake Reset: Reset the new electronic parking brake for braking wheels safely again.
- Battery Register & Battery Maintenance: Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.
- ABS Bleeding: Get a firm brake pad after air exhaustion.
- Electronic Throttle Position Reset & Learn: Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.
- Diesel Particulate Filter (DPF) Regeneration: Clear particulate matter from the DPF filter to stabilize the filter performances.
- Tire Pressure Monitor System Reset: Relearn TPMS sensors so that new sensors can be recognized by ECU.
- Tooth Learning: Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.
- Anti-Theft Matching (IMMOBILIZER): Add a new programmed key. PIN code is required.
- Injector matching: Write the new injector numbers into the ECU for accurate communication and injection control.
- AFS Reset: It detects the light of the environment, then decides whether to automatically turn on the headlights or not.
- EGR Adaption: Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.
- Gearbox Matching: Test the gearbox based on the driving conditions after the gearbox is disassembled or repaired, for a more comfortable and ideal shift quality.
- Sunroof Service: Set the sunroof lock switch to be on / off according to weather, temperature, and memory.
- SUS Reset: When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong.
- Windows Calibration.
- Seats Calibration.
- Tire Reset.
- Language Change.
- A/F Reset.
- Coolant Bleed.
- Transport Mode.
- NOx Sensor Reset.
- Dblue Reset.
- Stop/Start Reset.
- And More …
TPMS: Supports tire pressure activation, programming, learning, detection and other functions with a LAUNCH X-431 TSGUN TPMS WAND (additional purchase is required).
ADAS Calibration: It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (optional), which can realize the calibration of LDW, ACC, RCW, AVM, BSD, NVS and other ADAS systems.
Remote Diagnose: “Remote diagnose” can realize real-time communication between equipment and equipment or equipment and computer, complete vehicle remote diagnosis.
Toolbox: It can be used with endoscopes, battery detection, oscilloscopes, sensors, IMMO programmer and other expansion modules.
Software Upgrade: Supports one-click online upgrade of client software, vehicle model software, and connector firmware. Update Online Via Official Website: http://www.dbscar.com
Info Centre: The information Centre integrates maintenance materials, general information and equipment information, and is an information query Centre.
The maintenance information includes operation skills, fault code help, vehicle maintenance technical manual and IMMO database;
General information provides various types of car maintenance videos and information website online query;
Device information includes product manuals and answers to frequently asked questions.
Feedback: When users encounter vehicle models and functional abnormalities under special circumstances during use, they can provide their opinions to Launch through “feedback”.
Diagnostic History: For each diagnosis, vehicle diagnosis records are automatically generated for easy viewing and comparison at any time to help locate faults.
Mall: Supports online purchase of software, functions and some hardware outside the configuration, software renewal, etc., and more functions are coming online.
With coverage in Asian, American, European and Chinese Vehicles. Both Gasoline and Light Diesel Vehicles.
AMERICAN: Ford America, Chrysler, GM, GM Brazil, Buick, Cadillac, Chevrolet, Dodge, Fiat Brazil, Jeep, Lincoln, Holden.
EUROPEANS: Audi, BMW, Fiat, Ford Euro, MB, Mini, Opel, Peugeot, Renault, Seat, VW, Volvo, Smart, Skoda, Saab, Abarth, Alfa Romeo, Aston Martin, Bentley, Bugatti, Citroen, Dacia, Ferrari , Jaguar, Lamborghini, Lancia, Maserati, Maybach, Porsche, Paz, Rolls-Royce, Rover, Skoda, Sprinter, Vauxhall and more.
ASIAN: Acura, Daewoo, Daihatsu, Holden Australia, Honda, Hyundai, Hyundai Korea, Ikco, Infinity, Isuzu, KIa, Kia Korea, Lexus, Luxgen, MVM, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Perouda, Proton, Saipa, Samsung, Subaru, Suzuki, Tata, Toyota and More.
Chinese: Baic, Faw, Jac, MG, Gac, Great Wall, Chery, Brilliance, Byd, Fukang, Geely, Hafei, Gonow, JMC, Lifan, Maxus and more…
Specifications of the tablet:
- Processor: 2.0GHz 4 core.
- Operating system: Android 10.0.
- Memory: 4GB.
- Battery: 47880mWh (7.6V,6300mAh)
- Camera: Rear 8 million pixels.
- Screen: 8 inches 1280*800.
- WIFI: 2.4GHz/5GHz (dual frequency)
- Interface: 1pc*TYPE A &1pc*TYPE C.
- Working temperature: 0~50℃
- Size: 228*160*37.4(mm)
- Specifications of the DBScar VII VCI connector:
- Working voltage: DC 9~18V.
- Communication method: Bluetooth.
- Size: 118.3*69.5* 32 (mm)
Package Includes:
- Launch X-431 PROS V5.0 tablet
- DBScar VII VCI connector
- OBD main cable
- USB cable
- UK standard power adapter
- US standard power adapter
- EU standard power adapter
- Standard power adapter
- 1 X For K-20 adapter
- 1 X For G/V 12 adapter
- 1 X For FD 6+1 adapter
- 1 X For HA 3 adapter
- 1 X For TA 22 adapter
- 1 X For TA 17 adapter
- 1 X For CR 6 adapter
- 1 X For B 20 adapter
- 1 X For BZ 38 adapter
- 1 X For BZ 14 adapter
- 1 X For M/H 12+16 adapter
- 1 X For NN 14+16 adapter
- 1 X Lighter
- 1 X Power cable clips
- User manual
- Password envelope
